Example of installation in derivation on the principal line
previous example - next example

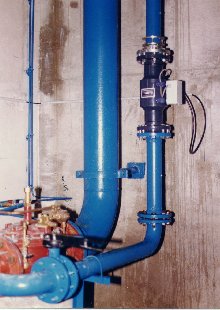

Turbine HPW80-B is assembled on a derivation made upstream sluice valve controlling the water level in the reservoir. The flow is limited to 15 m3/h (4 l/sec) by a diaphragm. The turbine functions during 10 to 12 hours per days, mainly when the sluice valve is closed. Hydraulic connection is made by two supports DN80.

The produced electric power is stored by the battery of device HYDROPOWER to supply permanently a teleprocessing satellite and a measurement probe of water height.
